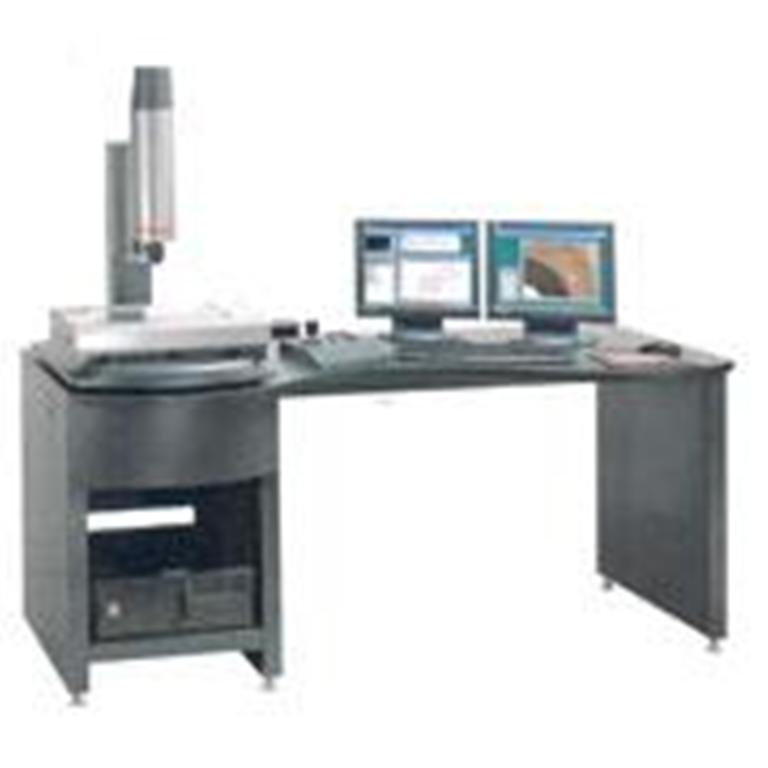

These CNC video inspection systems come with powerful, full-featured Quadra-Check QC-5000 3-D Metrology Software.
Features:

Optics: 12:1 Video zoom package with video magnifications of 15X to 550X
Lighting: Fiber optic ring and sub-stage (bottom) lighting with fiber optic coaxial through the lens) available as an option or white LED ring and sub-stage with white LED coaxial (through the lens) available as an option.
Video Camera: Color CCD, 768H X 494V pixel array
Two LCD monitors
Drive Method: X/Y/Z and Zoom Stepper drives with CNC and joystick control for X, Y, and Z.
Travel & Measuring Capacity: X: 6” or 12” (150mm or 300mm), Y: 6” (150mm), Z 5.5” (140mm).
Metrology Software: Metronics Quadra-Check QC-5000 three dimensional software.
Linear Accuracy: (X&Y): E2 = 1.9 + 5L/1000, (Z) E1 = 2.5 + 5L/1000
Resolution: 0.0005mm (.00002”)
